케이블 몰딩 타입

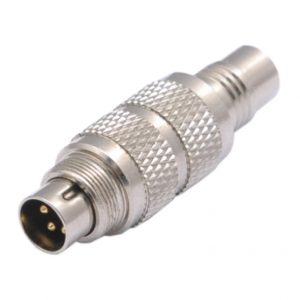

Male connector for over-molding

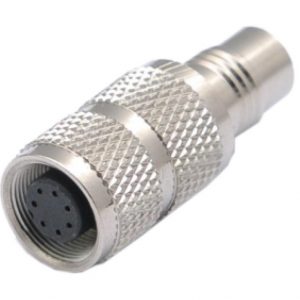

Female connector for over-molding
패널 타입

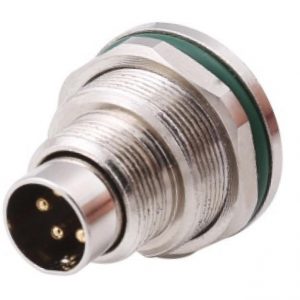

Male panel connector

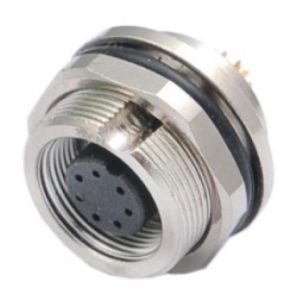

Female panel connector
조립식

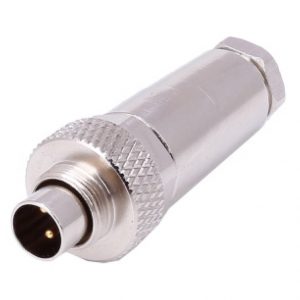

Male assembly connector

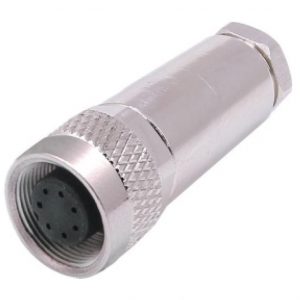

Female assembly connector
접점 레이아웃

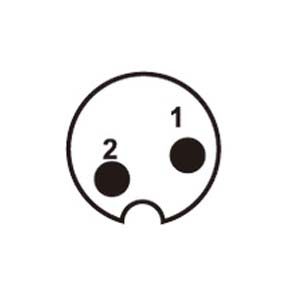

2Pins

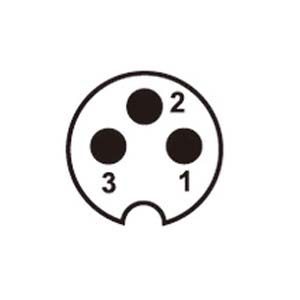

3Pins

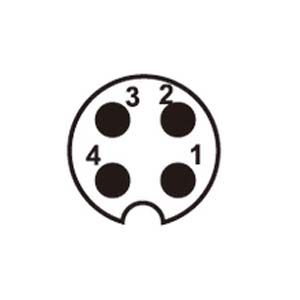

4Pins

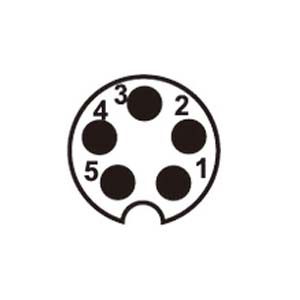

5Pins

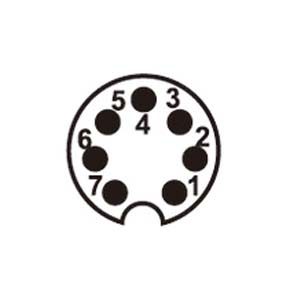

7Pins

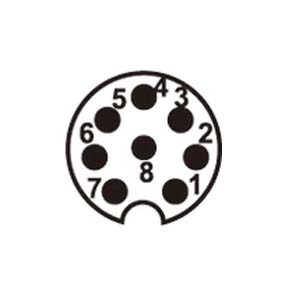

8Pins
참조 사양
케이블 몰딩 타입 Male/Female
| Number of contacts | 2 | 3 | 4 | 5 | 7 | 8 |
| Termination | solder | |||||
| Wire gauge | 0.25mm² / 24 AWG | 0.14mm² / 26 AWG | ||||
| Operating temperature | -25°C~+85°C | |||||
| Mechanical operation | > 500 mating cycles | |||||
| Rated voltage | 125V | |||||
| Rated current (40°C) | 4A | 3A | 1A | |||
| Protection degree | IP67/IP68 | |||||
| Contact resistance | ≤3mΩ | |||||
| Insulation resistance | ≥100MΩ | |||||
| Pin contact | CuZn | |||||
| Socket contact | CuSn | |||||
| Contact plating | Au | |||||
